Hairline crack at an inside corner
Expected behaviour: two wall planes meet there and move independently. If the crack stays under about 1 mm, it is a movement joint in disguise — monitor it and act only if it widens.
Why stucco cracks and delaminates
Stucco fails for readable reasons: a base that dried too fast, a finish that went on too soon, wire buried too shallow, or water travelling behind the wall. This guide walks through the correct three-coat system layer by layer, then maps each crack pattern to its cause and its fix.
01
Three coats, about 25 mm in total, with the reinforcement wire buried in the middle third of the brown coat. Each layer has one job, and each needs its own curing window.
02
Cracks are read by location and timing. Inside corners crack by design; first-year map cracking is a curing fault; late cracking and efflorescence point to movement or water below.
03
Remove the cause, cut back to sound material, and rebuild in the original layers with proper curing. On acrylic finishes, plan to recoat the whole plane — patches do not blend.

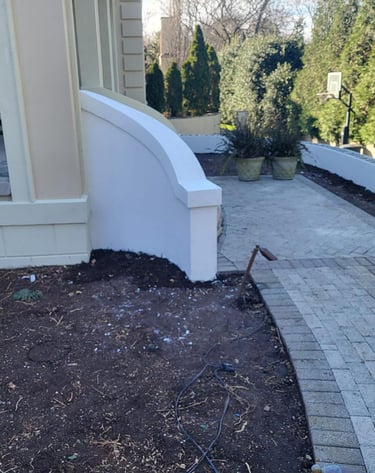

A sound three-coat stucco wall is about 25 mm of cement plaster built in three distinct layers, each with its own job.
The scratch coat is the first layer, applied at about 10 mm. Its job is bond: it keys the plaster to the substrate, and its surface is scored so the next coat can grip it mechanically.
The brown coat is the second layer, also about 10 mm, and it is the reinforcement layer. The wire is embedded in the middle third of this coat — never against the substrate and never at the surface, because rusting wire expands and pushes the finish off.
The finish coat is the last 5 mm or so. It carries the texture and the weather face, and it can be a Portland-cement finish or an acrylic or elastomeric one — a choice that matters later, when the wall needs patching.
Expected behaviour: two wall planes meet there and move independently. If the crack stays under about 1 mm, it is a movement joint in disguise — monitor it and act only if it widens.
A curing fault. The base was too dry, the finish coat went on too soon, or the plaster was not kept moist long enough.
Usually movement or settlement in the structure below the plaster. Investigate the cause before recoating, or the cracks return.
Salt left behind by water moving through the wall. It signals water behind the finish — trace the water path before any cosmetic repair.
The bond between coats, or between plaster and substrate, has failed. Cut the area back to sound material and rebuild the layers.
Often wire embedded too close to the surface. Rusting wire expands, and that expansion lifts the finish coat off the wall.
A crack that stays under about a millimetre wide is a movement joint in disguise, not a failure.
Most stucco failures are schedule failures: the next coat went on before the last one had cured.
| Element | Typical value | Why it matters |
|---|---|---|
| Scratch (base) coat | about 10 mm | Bonds to the substrate and keys the next layer |
| Brown coat | about 10 mm | Carries the reinforcement wire in its middle third |
| Finish coat | about 5 mm | Weather face and texture; cement, acrylic, or elastomeric |
| Total system | about 25 mm | Thinner builds lose the reinforcement layer and crack sooner |
| Moist curing | minimum 48 h per 25 mm | Plaster gains strength only while it stays damp and shaded |
| Application temperature | about 5–10 °C minimum | Below this, or with overnight frost, the coat should not go on |
| Hot-weather limit | about 32 °C | Above this the cure needs film or wet coverings |
| Acceptable crack width | under about 1 mm | A hairline at an inside corner is movement, not failure |
The values cited here reflect standard cement-plaster practice and typical manufacturer application limits, not any single document.
